The Jadis JS5 has been developed with one important goal: to make
the best and most musical reference tube DAC available. The power
supply and grounding of the digital section are still totally
independent from the analog part of the circuit. This version
accepts many formats thanks to its new digital board and is equipped
with an advanced digital power management system. The MKV version
uses the AKM4497 converter (mono-architecture - 1 per channel). All
managed by a microcontroller. The MKV version comes to enrich the
extraordinary quality of the JS1 to let you hear the quintessence of
each track. The soundstage is still splendid with a warm but lively
sound. Specifications Type Digital to Analogue Converter Input type
4 Number of blocks 2 Valve list 2xECC82, 2xECC88, 1xEL84, 1xEF86
Dimensions 455X325X125 mm each Weight 30 kg Consumption 75 VA
Description Digital to Analogue Converter Inputs: -SPDIF on RCA -
PCM 24 bit/192 KHz -AES/EBU on XLR - PCM 24 bit/192 KHz -SPIDF on
Toslink - PCM 24 bit/ 192 KHz -USB on type B connector - PCM: 24 bit
/ 192 KHZ - DSD: 24 bit/384 KHz Output: unbalanced on RCA connectors

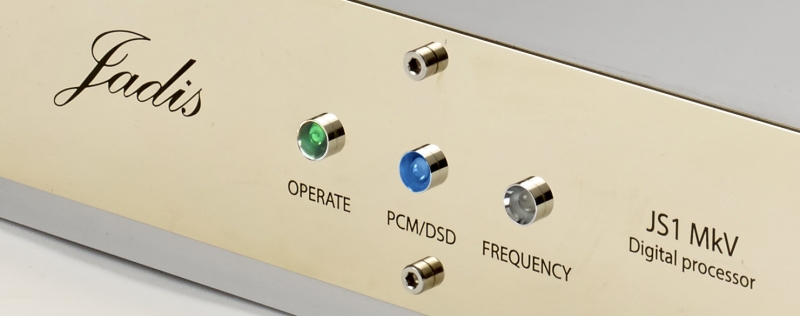

and fully balanced on XLR connectors The Jadis JS1 has been
developed with one important goal: to make available the best and
most musical reference tube DAC. The power supply and grounding of
the digital section are still totally independent from the analog
part of the circuit. This version accepts many formats thanks to its
new digital board and is equipped with an advanced digital power
management system. The MKV version uses the AKM4497 converter (single-architecture
- 1 per channel). All managed by a microcontroller. The MKV version
comes to enrich the extraordinary quality of the JS1 to let you hear
the quintessence of each track. The soundstage is still splendid
with a warm but lively sound. Specifications Type Digital to Analog
Converter Input type 4 Number of blocks 2 Valve list 2xECC82,
2xECC88, 1xEL84, 1xEF86 Dimensions 455X325X125 mm each Weight 30 kg
Consumption 75 VA Description Digital to Analog Converter Inputs:
-SPDIF on RCA-PCM 24 bit/192 KHz -AES/EBU on XLR - PCM 24 bit/192
KHz -SPIDF on Toslink - PCM 24 bit/ 192 KHz -USB on type B connector
- PCM: 24 bit / 192 KHZ - DSD: 24 bit/384 KHz Output: unbalanced on
RCA connectors and fully balanced on XL connectors
Specifications
| Type |
Tube DAC with separated power supply |
|---|---|
| Input type |
4 digital |
| Bandwidth |
1hz to 50KHz |
| Number of blocks |
2 |
| Tubes list |
ECC82 X 2- ECC88 X 2 -EL84 X 1 -EF86 X 1 |
| Dimensions |
44x29x10.5cm ogniuno |
| Weight |
20Kg |
| Consumption |
75W |
