jp80

Il Jadis JP80MC è il preamplificatore più della casa Jadis. Costruito con 4 linee, 1 mm e 1 ingresso MC il JP80MC vi permetterà di collegare tutte le fonti analogiche che si desidera utilizzare. Lo stadio phono accetterà tutti i tipi di testine anche quelle con una bassa impedenza. Inoltre, l'alimentatore è sovradimensionato e separato al fine di preservare il segnale audio fragile. Enorme lo sforzo tecnico fatto per sviluppare questo preamplificatore questi sforzi aveva un solo scopo: l'ambizione di costruire il miglior preamplificatore in tutto il mondo. Preamplificatore stereo, costruzione in due telai con stadio d'alimentazione separato a valvole. Phono MC. Telecomando. Ingressi:5 sbilanciati /2 uscite/1 monitor- Telai :2- Valvole :ECC88 X 2 ECC83 X 6 EF86 X 1 EL84 X 1 - Misure:430x 345 x 175 mm ogni telaio- Peso:30kg - Consumo :65 w

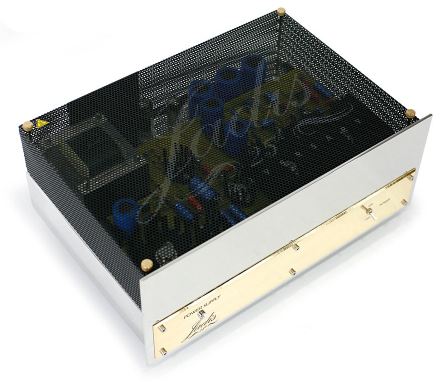

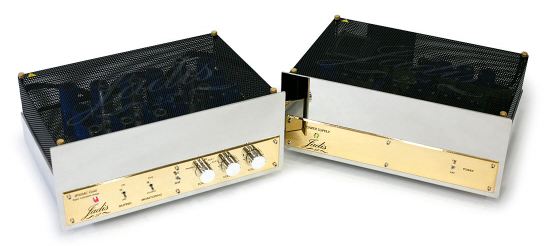

The JP80MC is the best selling preamp Jadis makes. It's beguiling sonic performance makes the JP80MC the phono preamp of choice amongst discerning music lovers throughout the world. As Jadis' flagship stereo pre-amplifier, the JP80MC comes complete with built in MM/MC phono and an outboard power supply. With one MM, one MC and four line inputs, and the ability to accommodate cartridges with very low impedance, the JP80MC delivers stunning sound from virtually any analog source you wish to use. The JP80MC is also endowed with an over-size outboard power supply which preserves the delicate audio signal. Enormous technical effort was invested in the development of the latest MkIII version to ensure that the JP80MC would be assured of its status amongst the world's very best phono preamps.The Jadis JP80MC is the most well known preamplifier made by Jadis. Built with 4 line, 1 MM and 1 MC inputs the JP80MC will allow you to connect any analog sources you migh want to use. The phono stage will accept all type of cartriges even the ones with a very low impedance. Also, the power supply is over sized andseparated in order to preserve the fragile audio signal. Enormous technical effort were made to develope this piece of equipmentandthese efforts had only one purpose: the ambition of biulding the best preamplifier in the world.The JP80MC is one of the great preamplifiers, it never ceases to amaze its listener with the punch and sound beauty it delivers. We have decided to give this JP80MC the highest award of the site: "5 stars State of the Art", for its exceptional musicality.Type Stereo line /MM /MC preamplifier with separated power supply Gain 20dB(line)/57dB(MM)/84dB(MC)@1KHz Input 4 line, 1 MM, 1 MC, 1 tape monitor Bandwidth @3dB 20Hz to 50 KHz (line) RIAA (phono) Input impedance 100kΩ Input sensitivity MM 1.8mV / MC 200μV / Line 120 mV Number of block 1 Tubes 2 x ECC88, 6 x ECC83, 1 x EF86, 1 x EL84 Dimensions 43 x 34.5 x 17.5 cm Weight 30 Kg Consumption 65W

The JP80MC is one of the great preamplifiers, it never ceases to amaze its listener with the punch and sound beauty it delivers. We have decided to give this JP80MC the highest award of the site: "5 stars State of the Art", for its exceptional musicality.
“http://www.thresholdlovers.com”

Type	phono MM/MC RIAA and line preamplifier
Gain	20 dB (line) / 57 dB (phono MM) / 84 dB (phono MC) à 1 KH
Input type	1 MM input, 1 MC input (Z>47K), 4 line inputs
Bandwidth	20 Hz to 50 KHz (line stage)
Sensibility	150mV
Number of blocks	2 (separated power supply)
Tubes list	ECC88 X 2 ECC83 X 6 EF86 X 1 EL84 X 1
Dimensions	430 x 345 x 175 mm each
Weight	30 kg
Consumption	65W
