JADIS JP200 MC 2022                                                                 Listino  ufficiale  €. 39.250,00

JP200MC è un preamplificatore mono / MM mono / phono con alimentazione separata. Questa unità utilizza al massimo tutte le sorgenti analogiche. Lo stadio phono accetta tutti i tipi di celle, anche quelle con bassa impedenza. Ha anche un interruttore per invertire la fase assoluta per adattarsi facilmente a tutte le tue registrazioni. Preamplificatore stereo, costruzione in 4 telai, dual mono, con stadi d'alimentazione separati a valvole, phono MM/MC Specifiche - Guadagno :line 25db /MM 59db/MC66 - Risposta :20Hz à 74kHz @-3dB -  Ingressi:4 Linea /1MM/1MC/1 monitor- Telai :4- Valvole :6 x ECC83, 2 x 6922 par bloc Alimentation: 1 x EF86, 1 x EL84 par bloc - Misure:430x 345 x 175 mm  ogni telaio- Peso:60 kg - Consumo :65 w

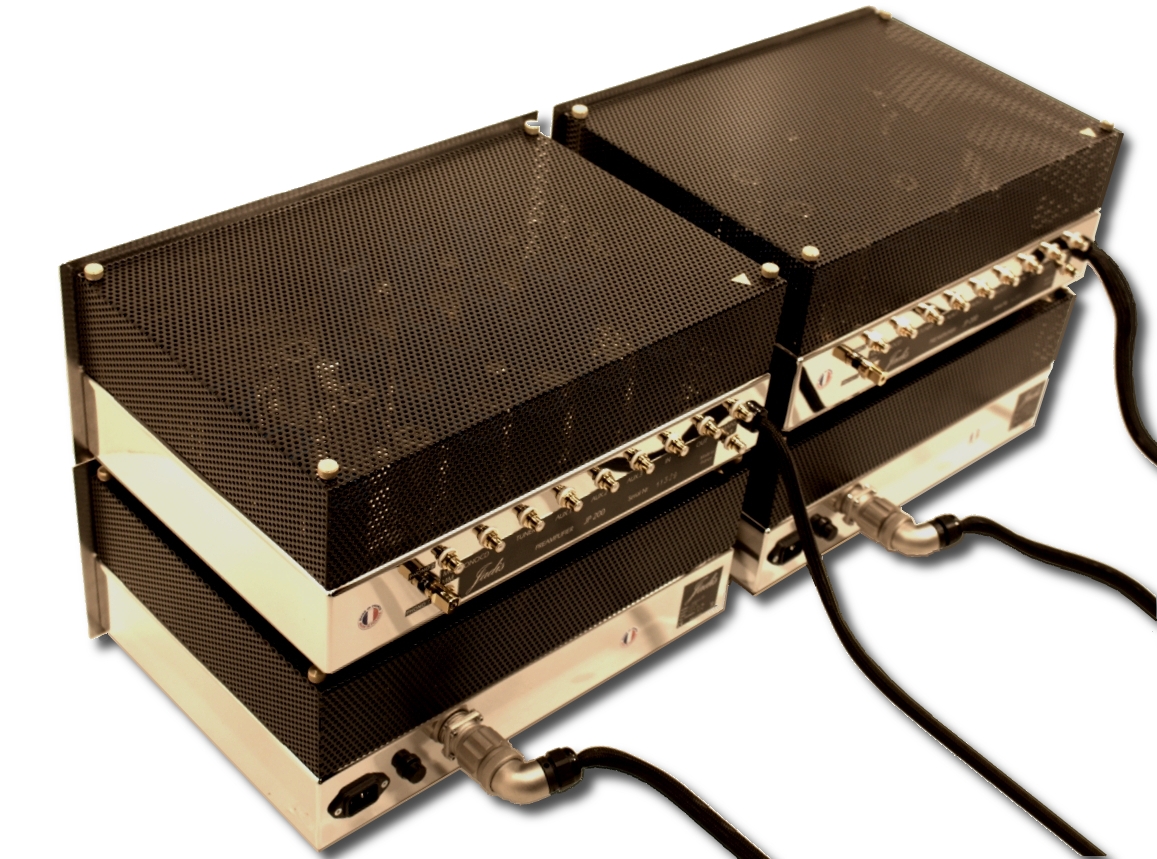

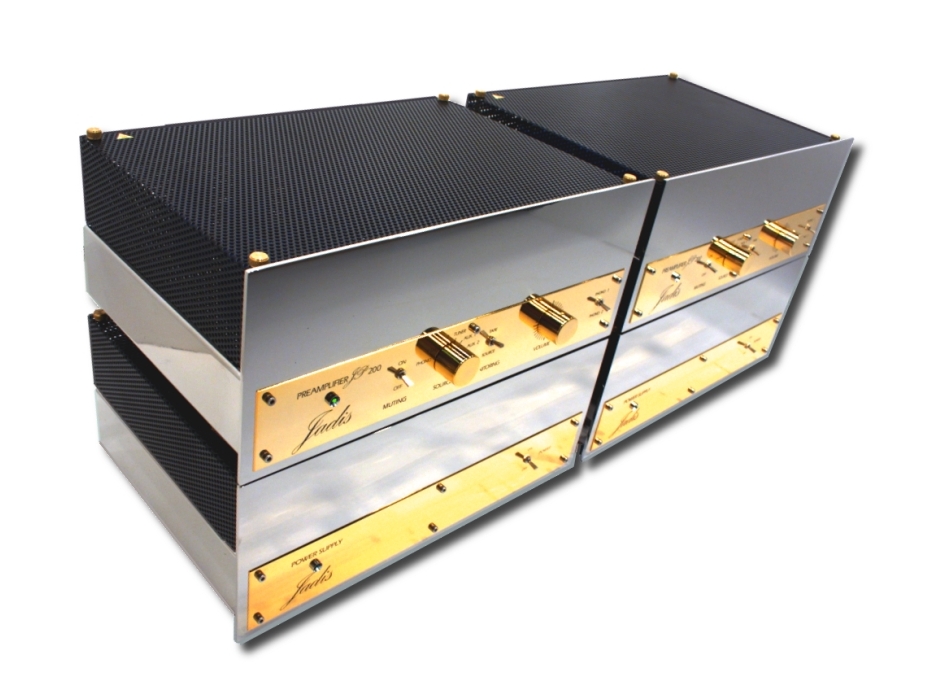

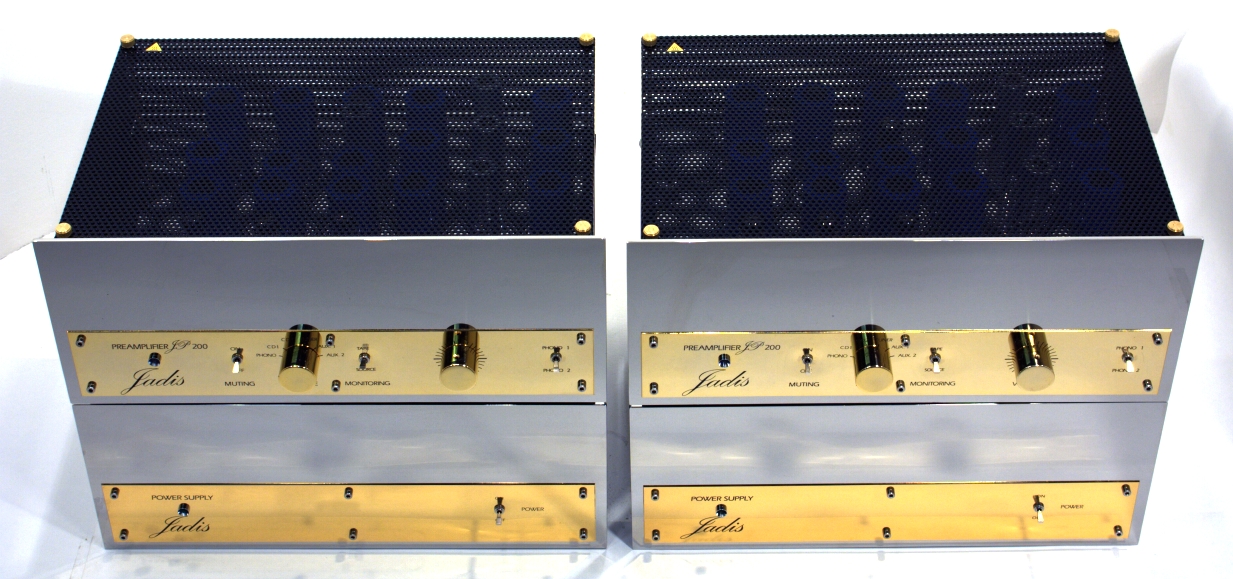

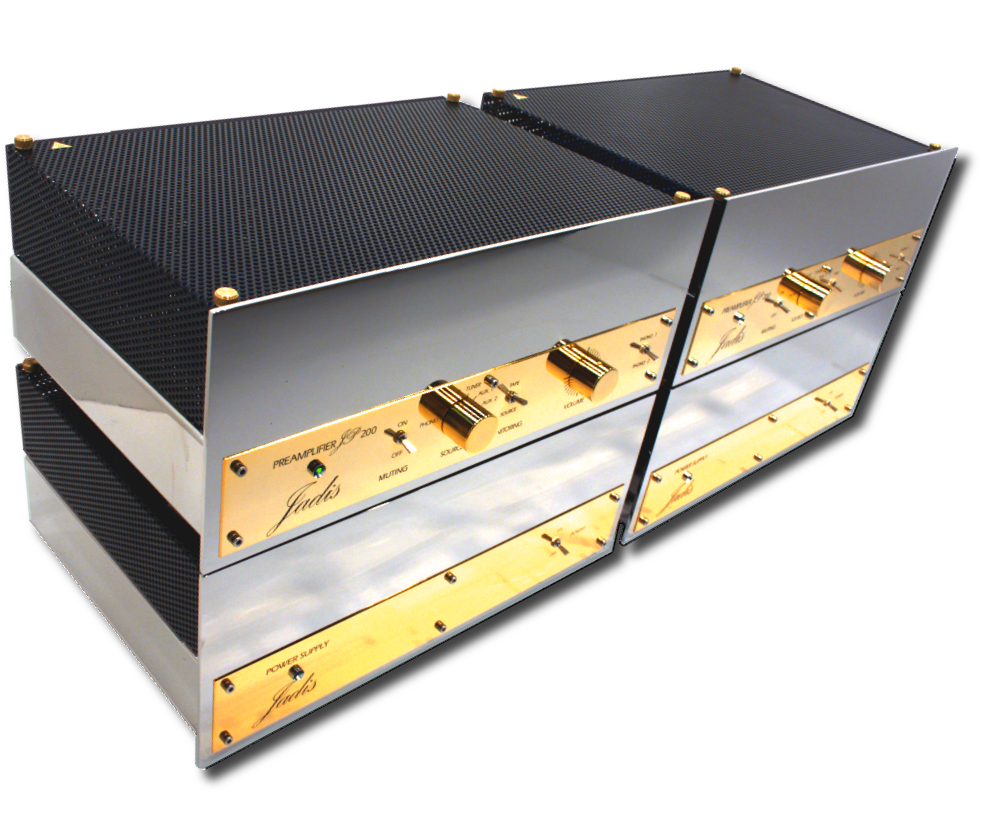

The JP200MC is the most advanced line/MM/MC preamplifier currently produced by Jadis. It is a four-box system. Two mono pre-amplifiers with phono and each having its own outboard power supply. Built with four line, one MM and one MC input, the JP200MC allows you to connect any analog sources you wish. The phono stage will accept all cartridges even ones with very low impedance.Built with 4 line, 1 MM and 1 MC input the JP200MC will allow you to connect all the analog sources you migh want to use. The phono stage will accept any cartriges even the ones with a very low impedance. Moreover this is a 4 blocks unit, with separatedand over sized power supply and a switch that allows the user to switch the phase to his convenience. The JP200MC include all the ingredients that make an exceptionaly great sounding preamplifier.The JA200MC is the most advanced line/MM/MC preamplifier currently produced by Jadis. The sound of this preamp is so liquid and natural with a sense of ease that just cannot be described. type Dual mono line/MM/MC preamplifier with separated power supply Gain 25dB(line)/59dB(MM)/66dB(MC)@1KHz Input 4 line, 1 MM, 1 MC, 1 tape monitor Bandwidth @3dB 20Hz 50 (line) RIAA (phono) Input impedance 100KΩ Line / 47.8KΩ MM / 100Ω MC Input sensitivity MM 1.8mV / MC 200μV / Line 120 mV Number of block 4 Tubes 6 x ECC83, 2 x 6922 Power supply 2 x EF86, 2 x EL84 Dimensions 43 x 34.5 x 17.5 cm Weight 60 Kg Consumption 74W

"Impressively wide soundstage, everything becomes clearer, easier, holographic! The build quality is superb and reliability is recognized by all. This preamplifier is clearly a reference among the best. Haute Fidelite "




SPECIFICATIONS
